The plate scale is 0.25"/pixel which provide a square FOV of 4.27 arcmin.
A set of 12 broad and narrow band filters will be available, plus a passband filter for spectroscopy. The filters were acquired via a consortium lead by  Dr. A. Tokunaga. Most filters were provided by Infrared Engineering, except the filters J, H and Ks which were provided by OCLI.


Filter Name	Cut-on (in microns)	Cut-off (in microns)	Transmission Curve
			Warm	Cold	Data

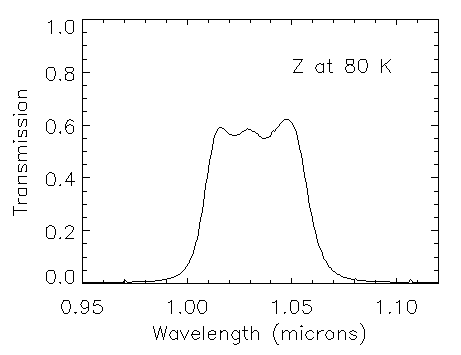

Z	0.996	1.069

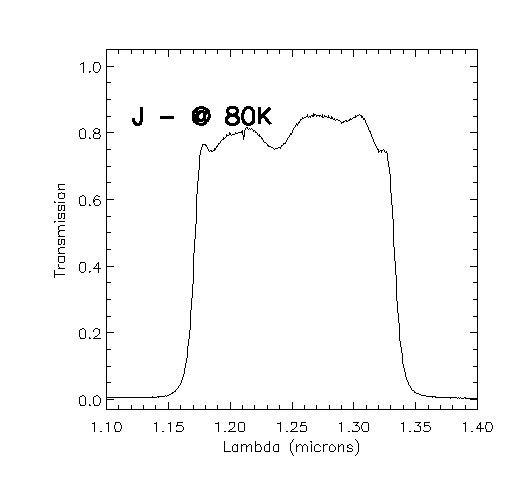

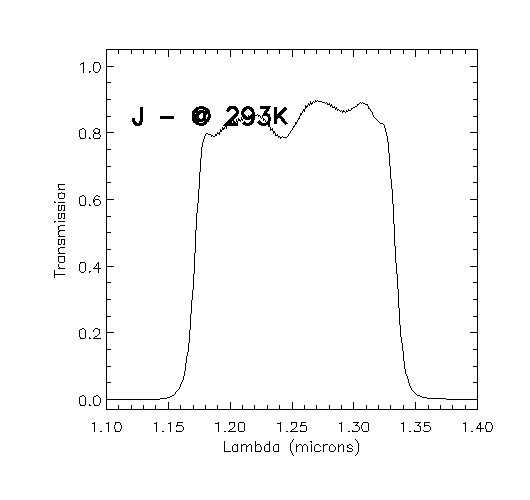

J	1.170	1.330

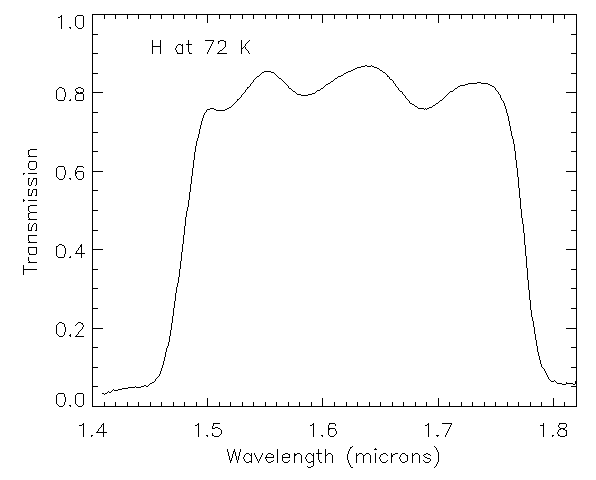

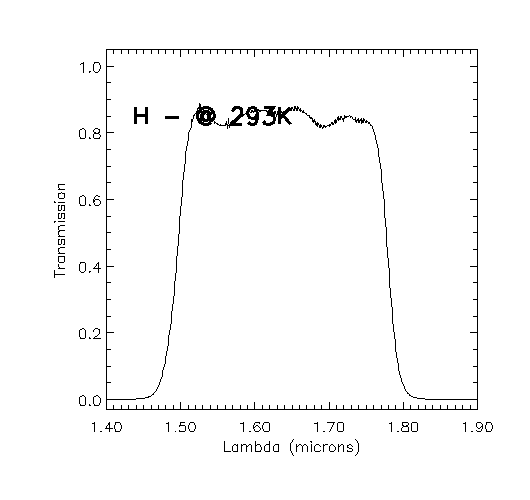

H	1.470	1.780

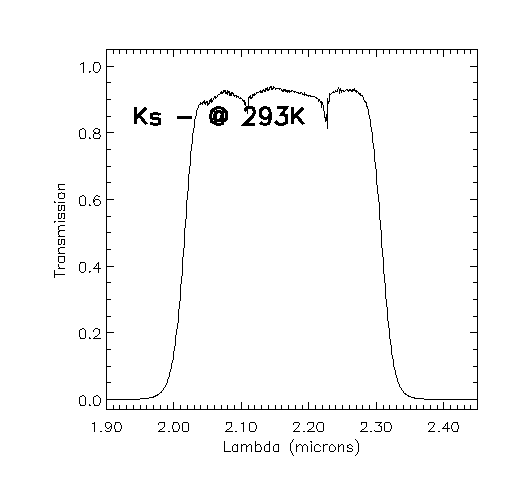

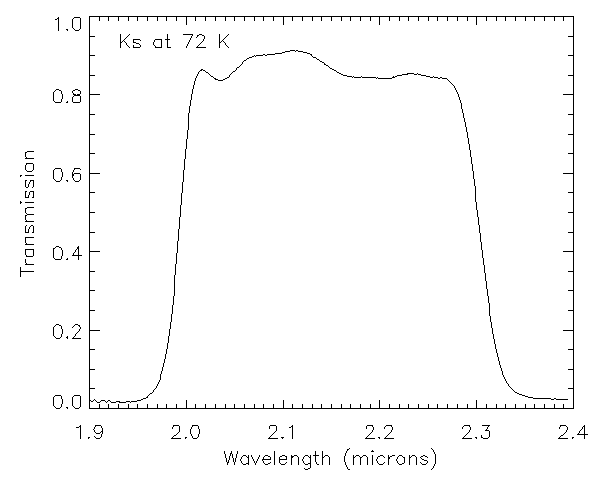

K_s	1.990	2.310

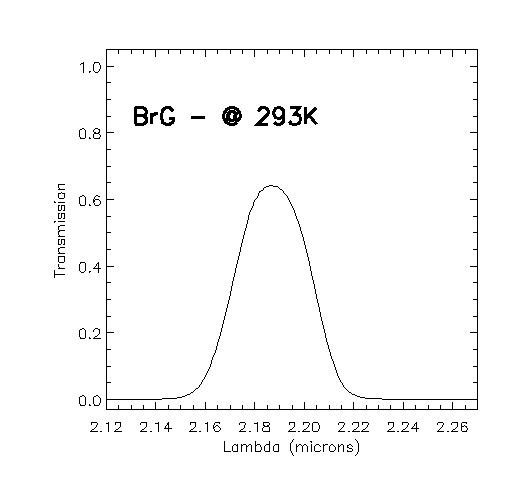

Br-gamma	2.150	2.190

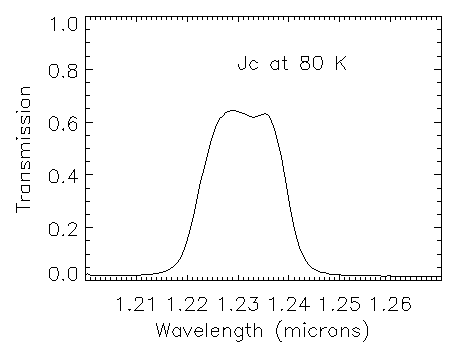

J-continuum	1.222	1.240

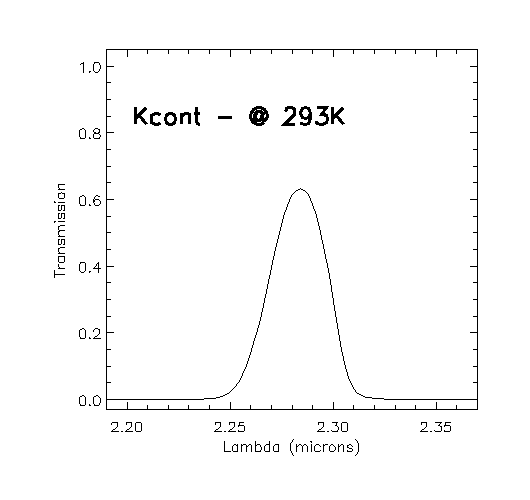

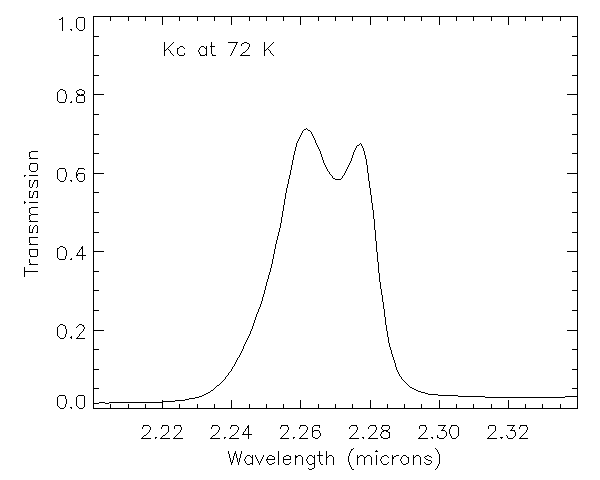

K-continuum	2.245	2.285

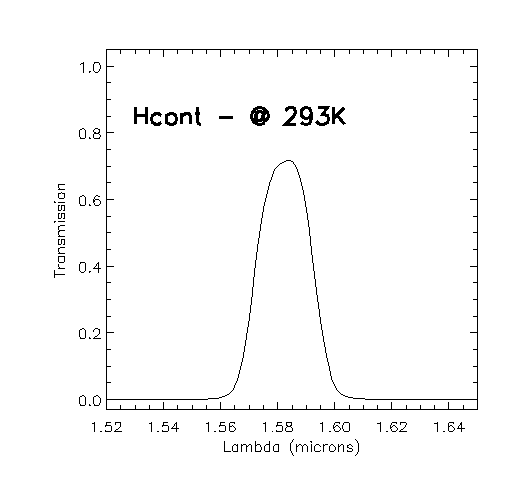

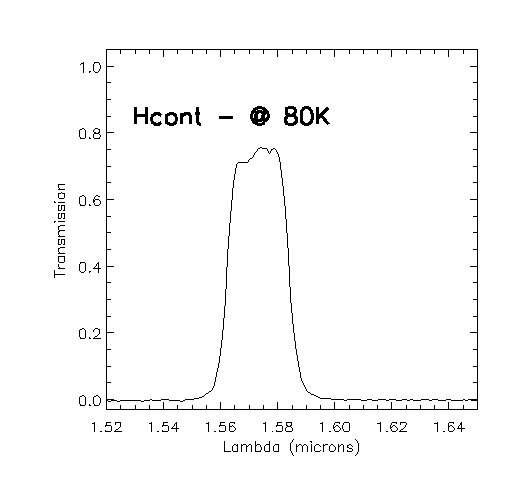

H-continuum	1.564	1.590

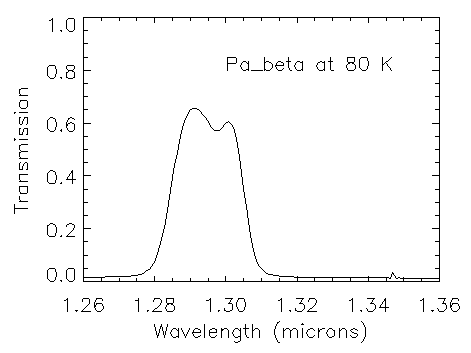

Pa-beta	1.285	1.305

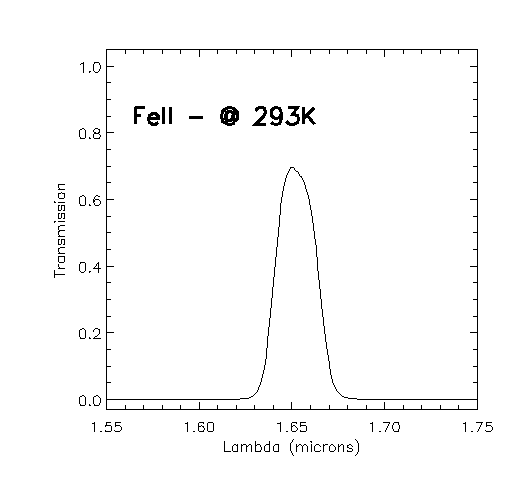

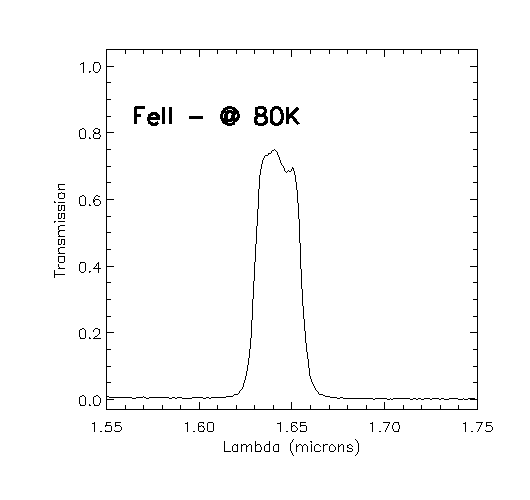

[FeII]	1.632	1.660

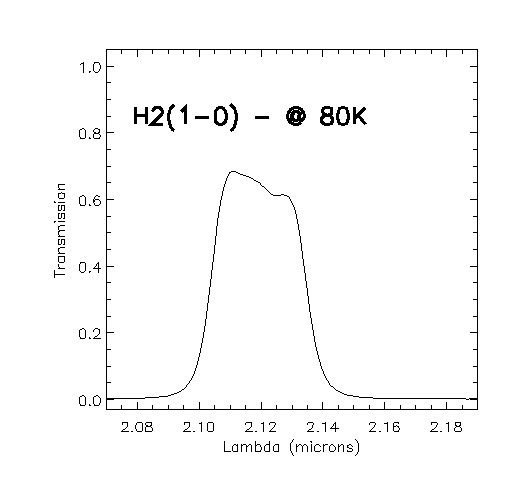

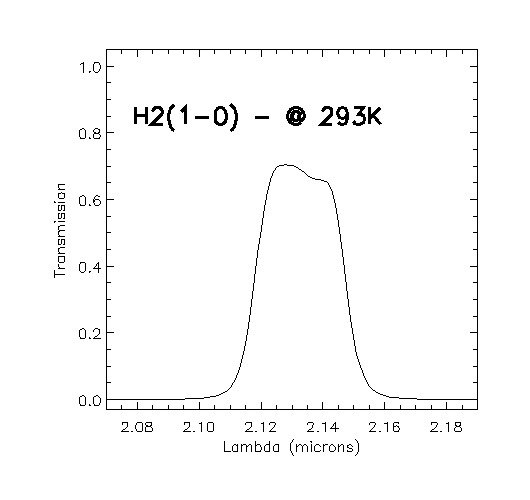

H2 v=1-0	2.106	2.138

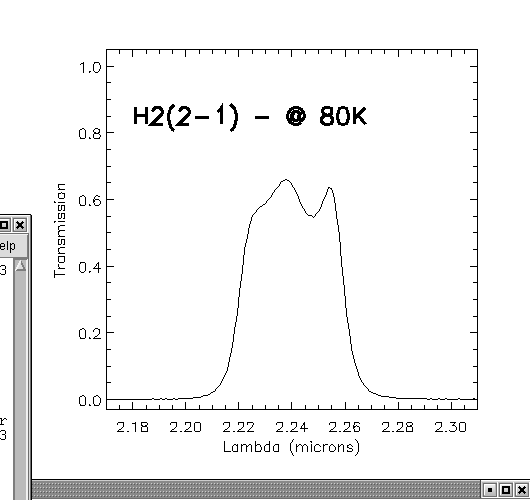

H2 v=2-1	2.22	2.262

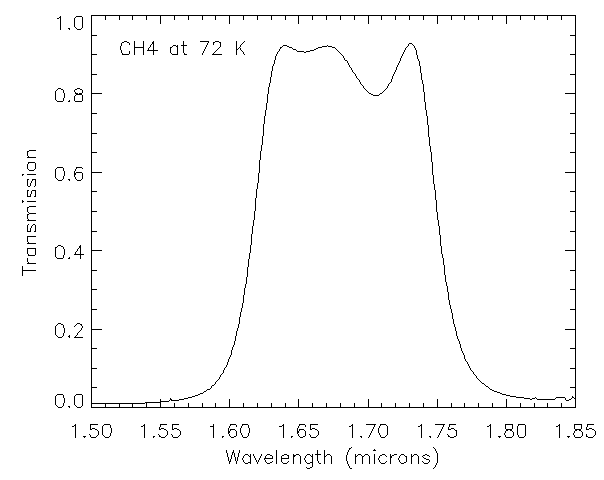

CH4_l	1.62	1.75

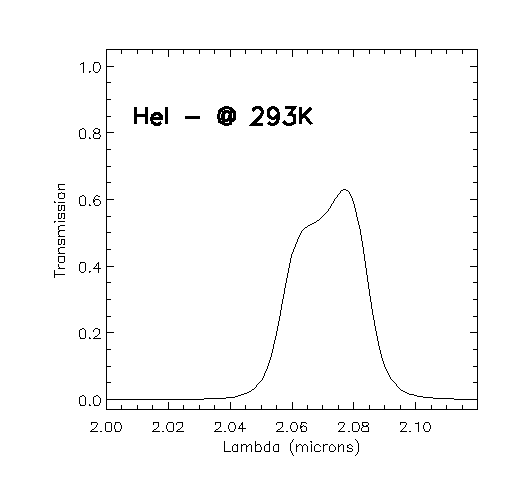

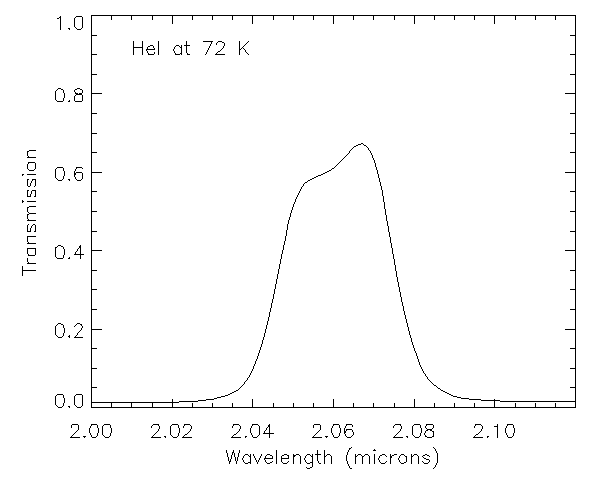

He I	2.043	2.073

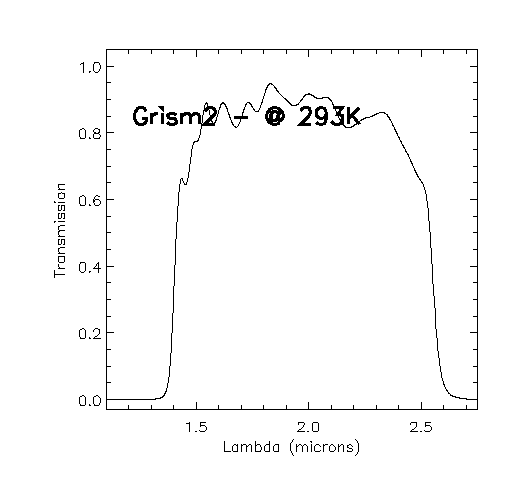

Bandpass	1.4	2.5

SPECTROSCOPY MODE


Material	l_ini	l_fin	Order	Resolution
C_9754	0.887	1.531	1	960
C_9754	1.388	2.419	1	945

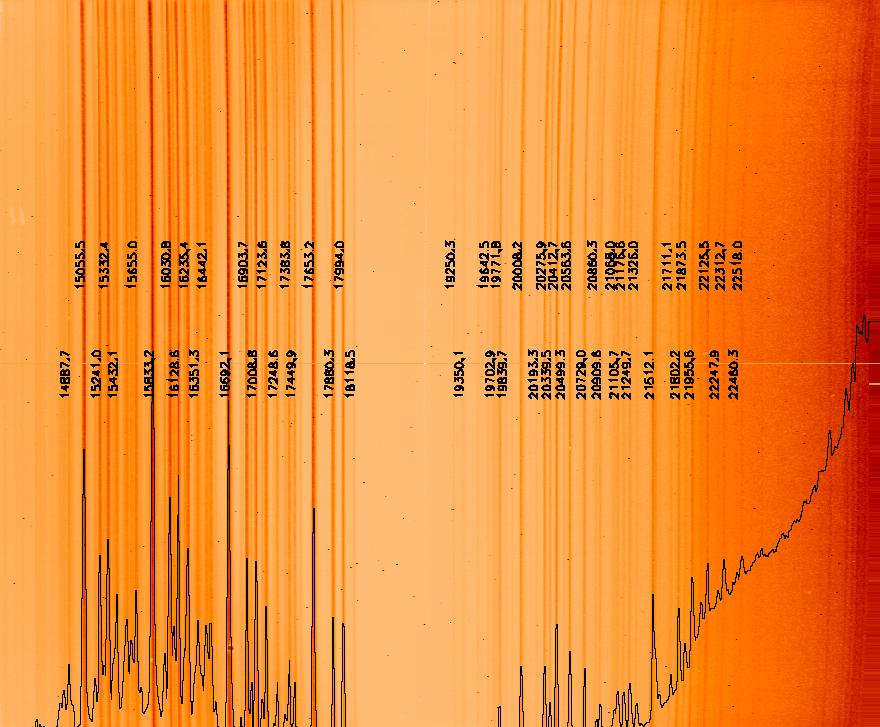

Wavelength calibration:

Grism	Ar Lamp		Xe Lamp		Sky lines

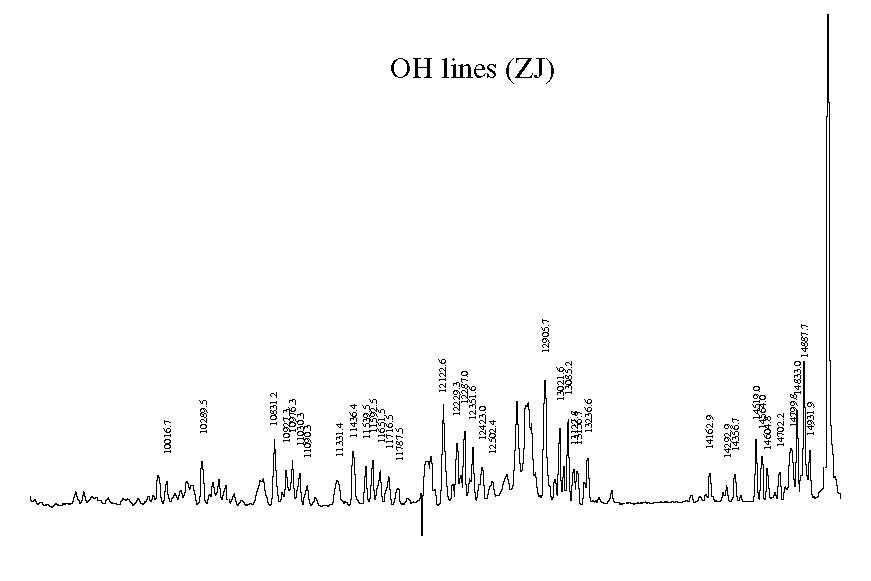

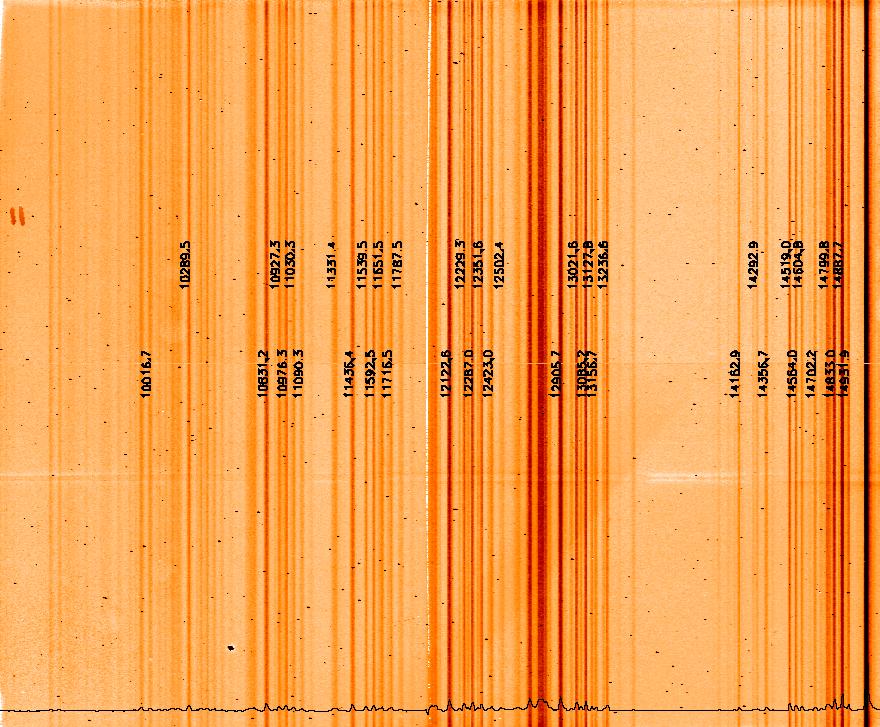

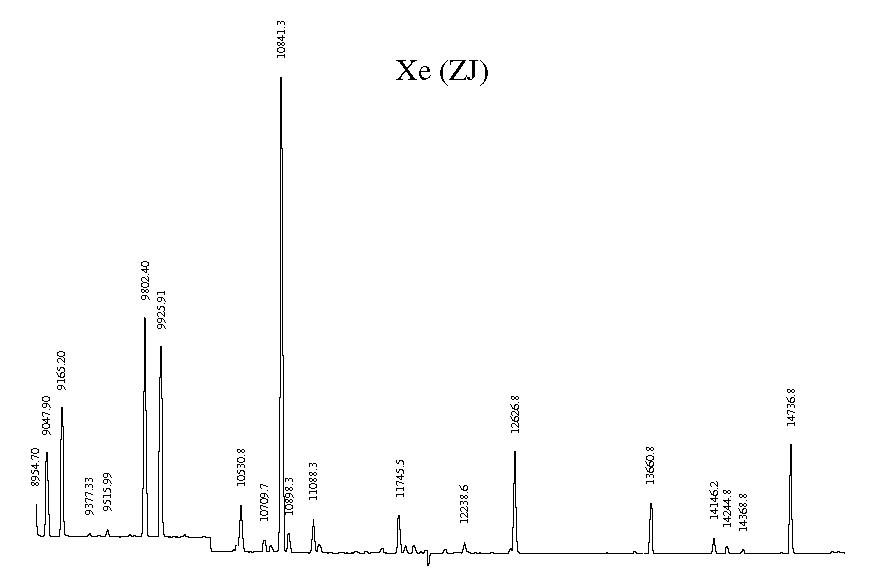

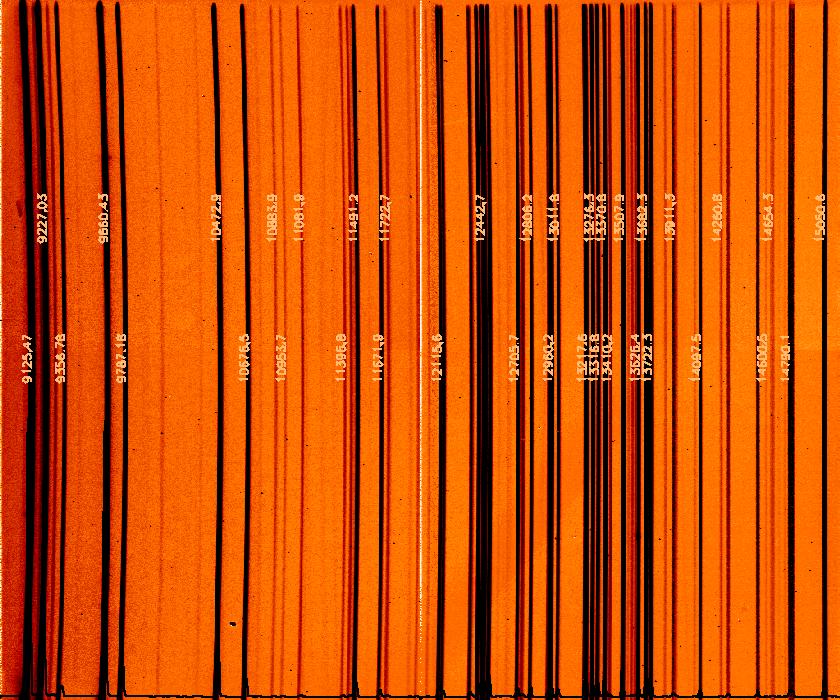

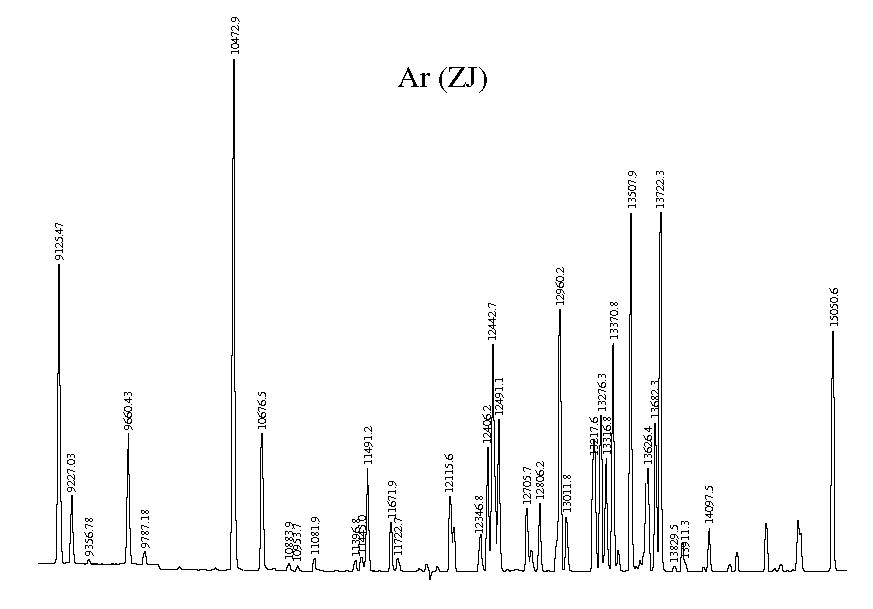

LR_ZJ		Line Maps: jpg/ ps		Line Maps: jpg/ ps		Line Maps: jpg/ ps

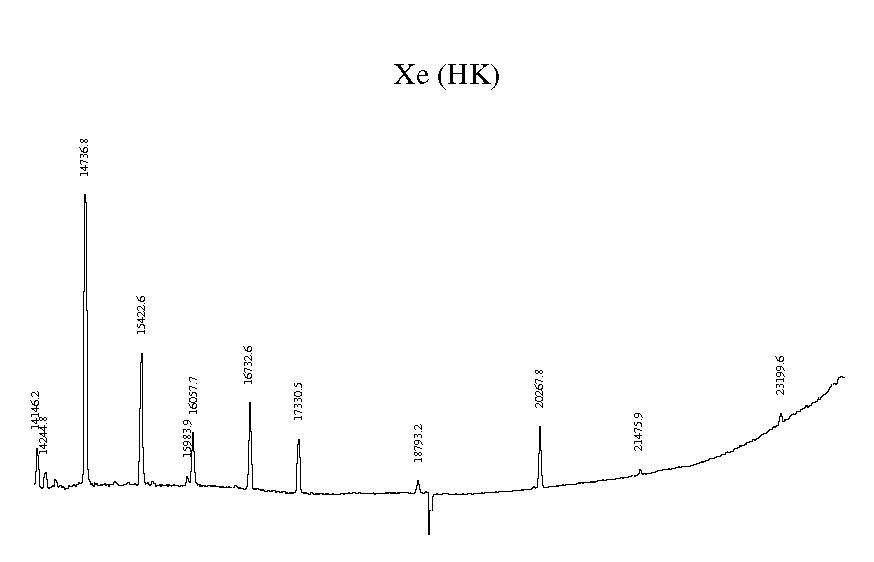

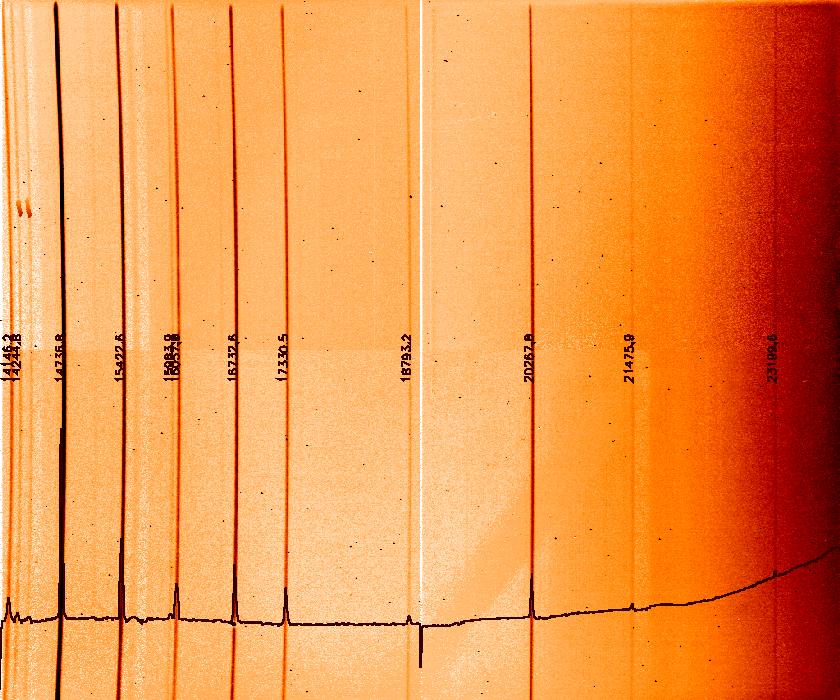

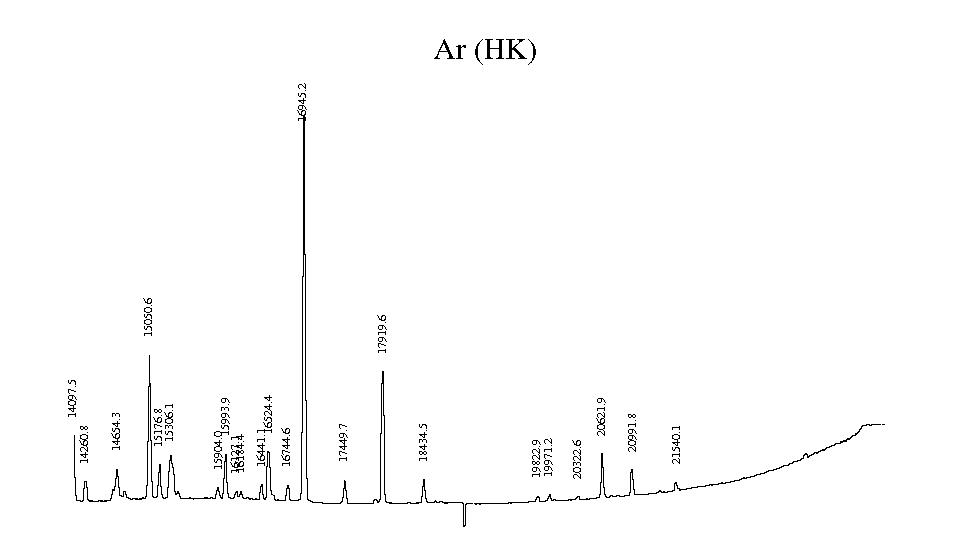

LR_HK		Line Maps: jpg/ ps		Line Maps: jpg/ ps		Line Maps: jpg/ ps
