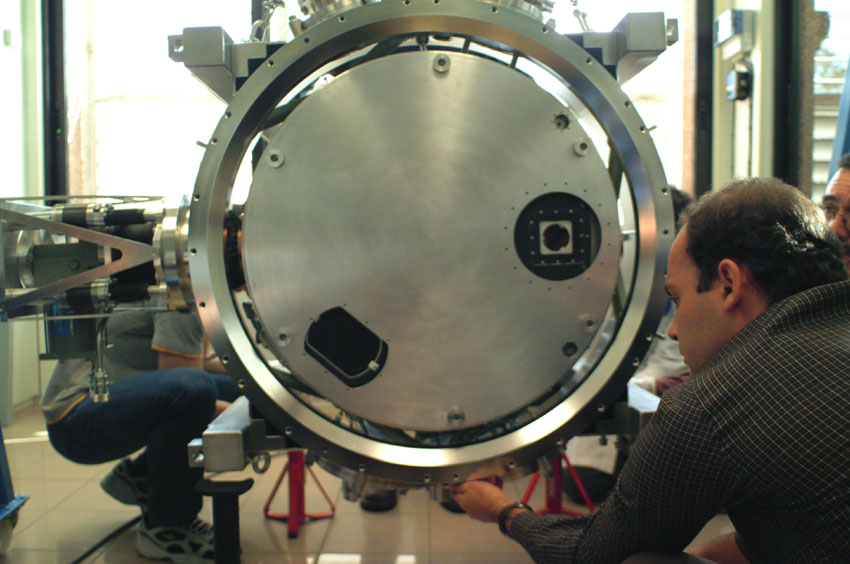

Positioning the optical bench on the trusses in the vacuum tank central ring (cables provisionally fixed for this cycle)

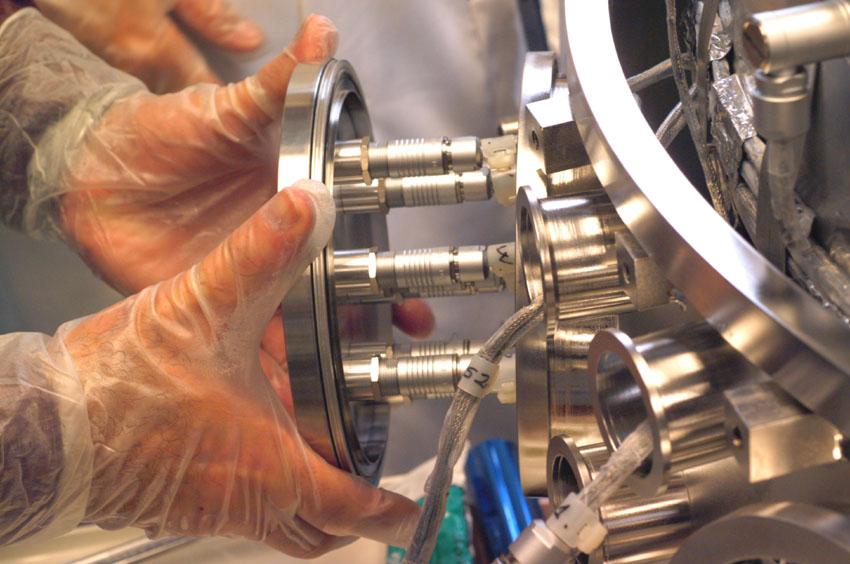

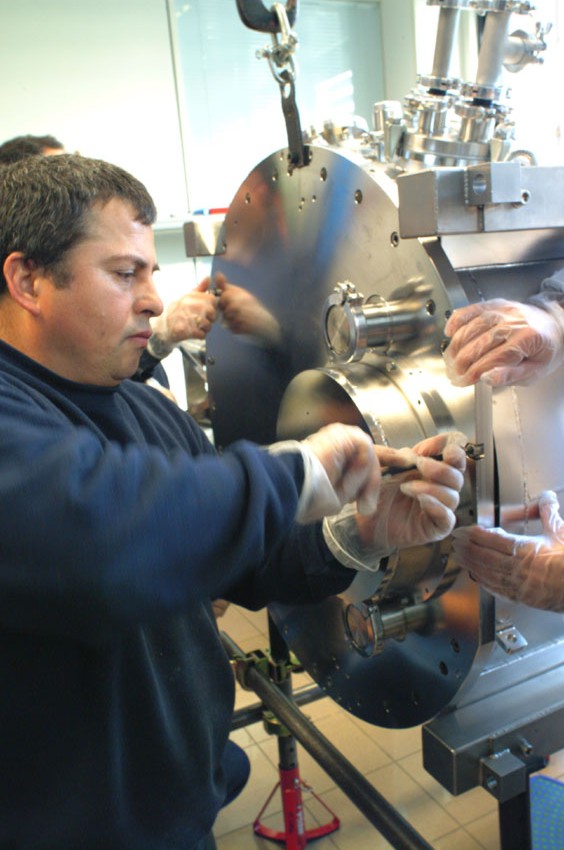

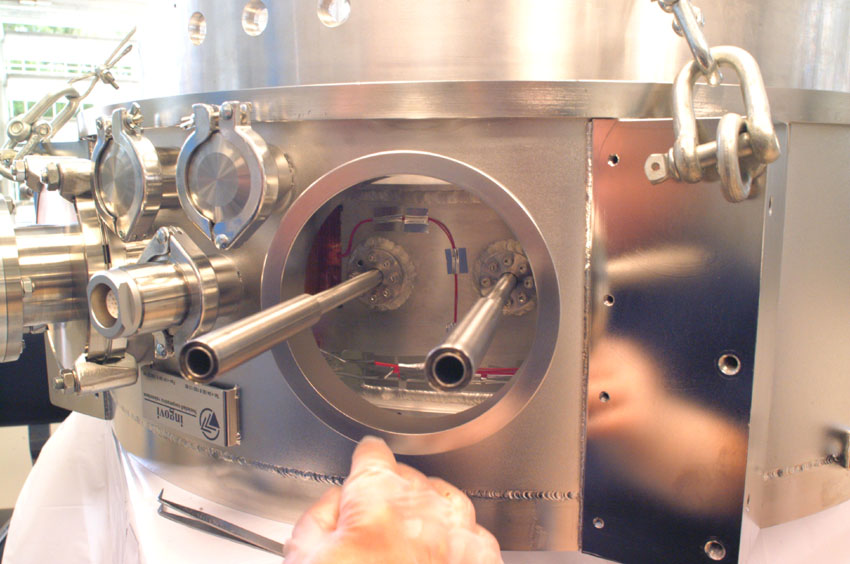

Cable connection

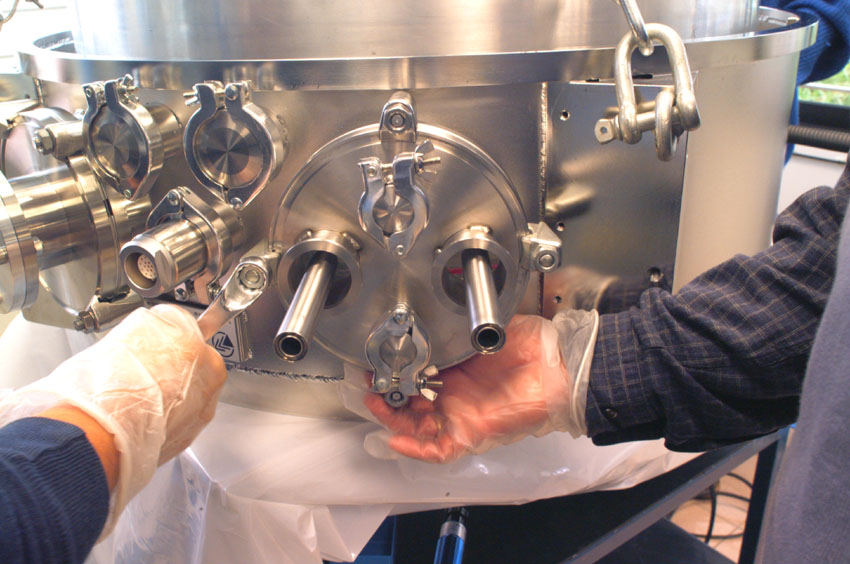

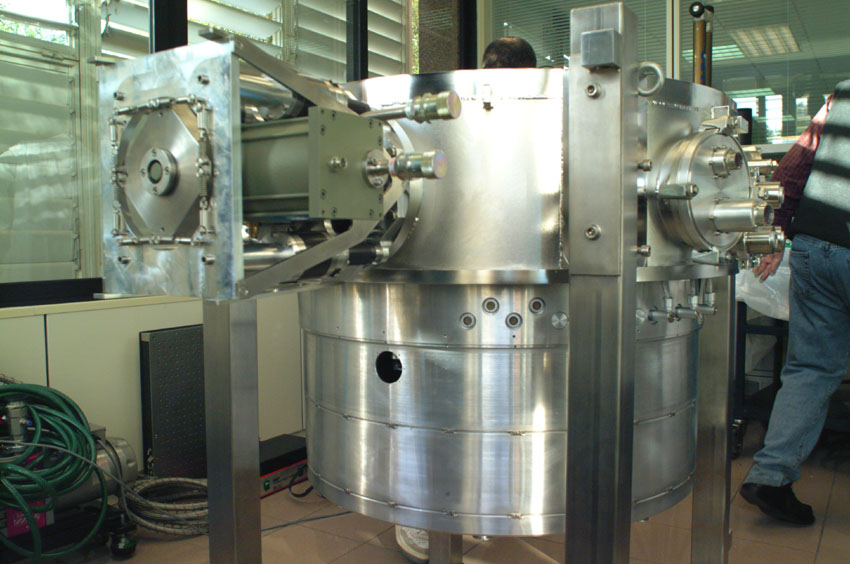

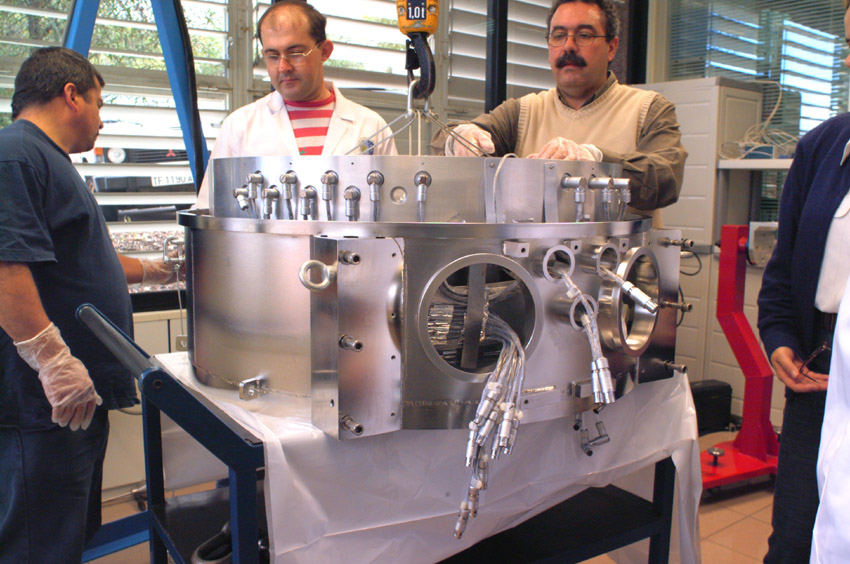

Cables verification	LN2 tubes connection

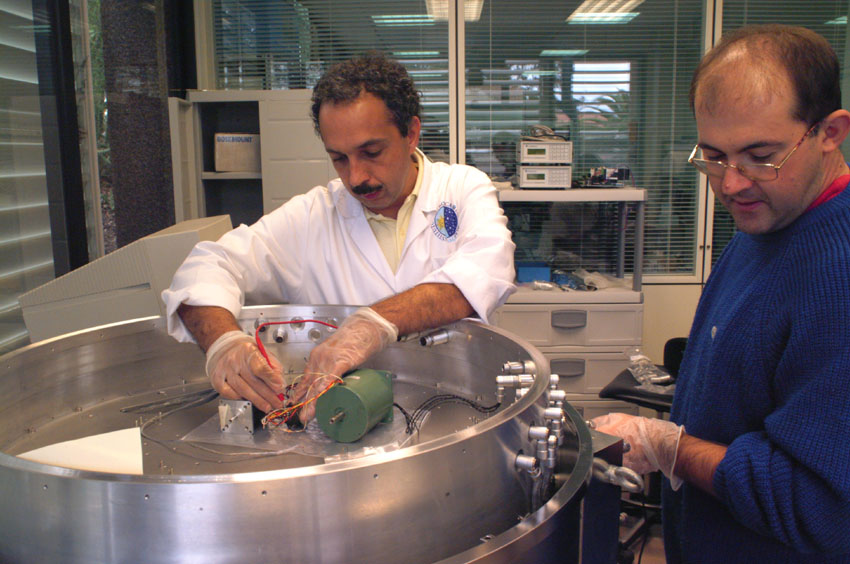

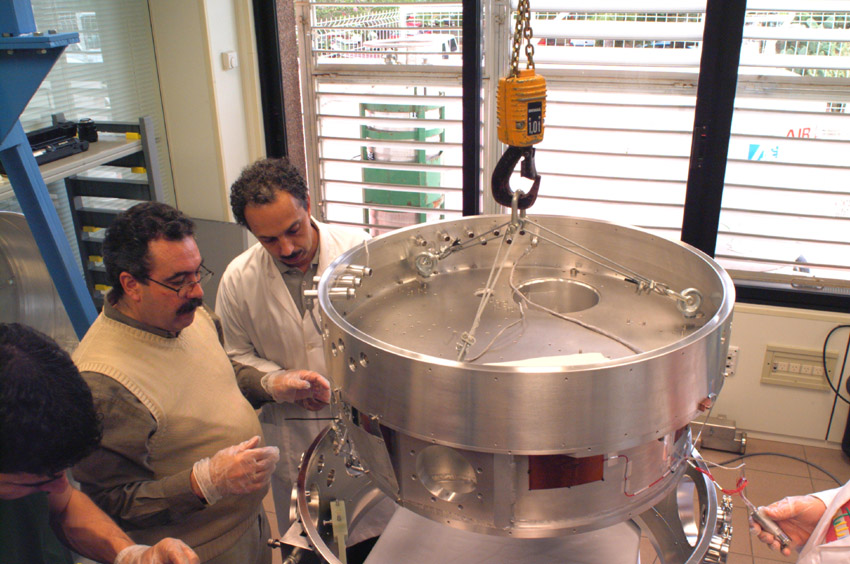

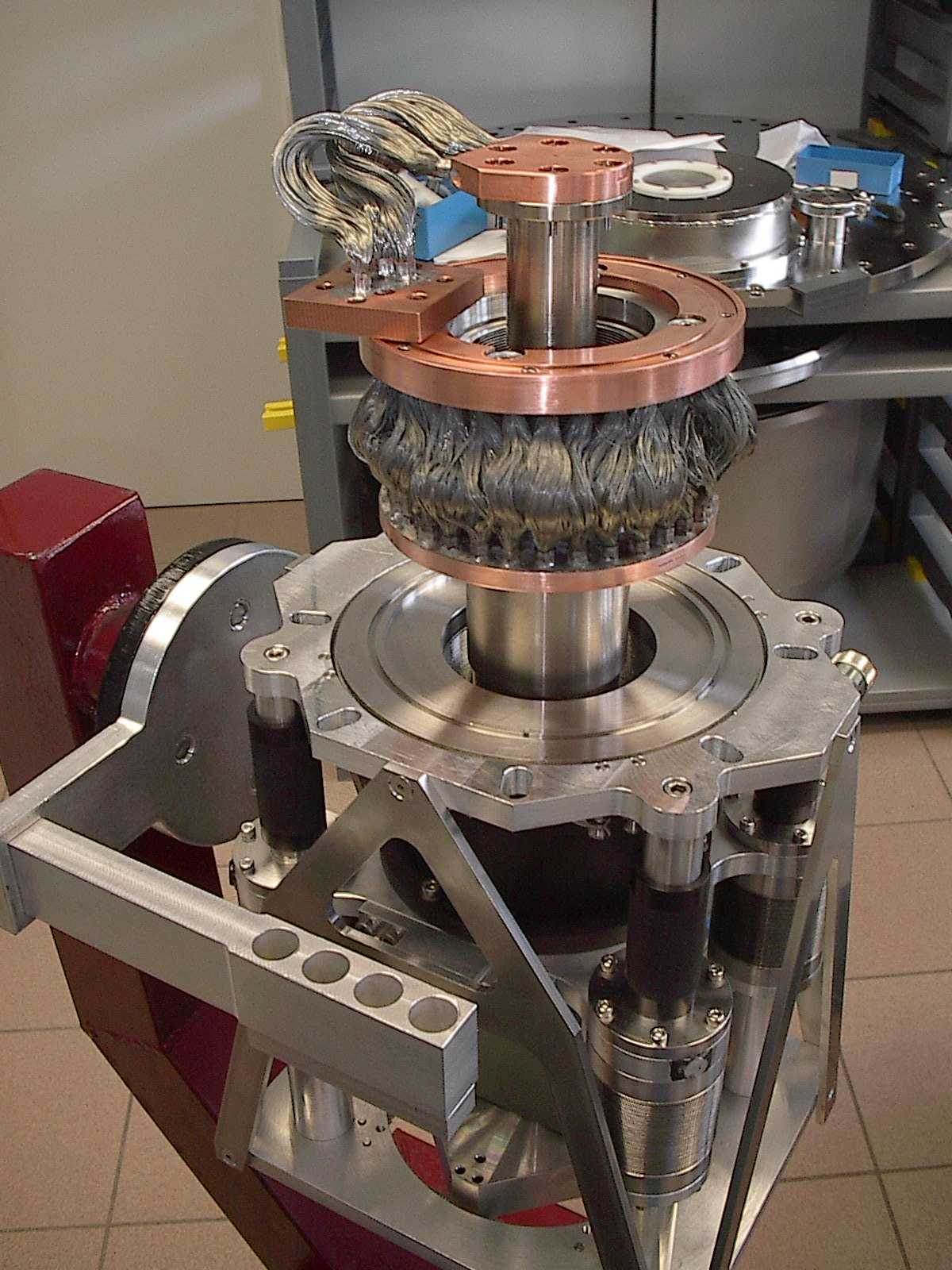

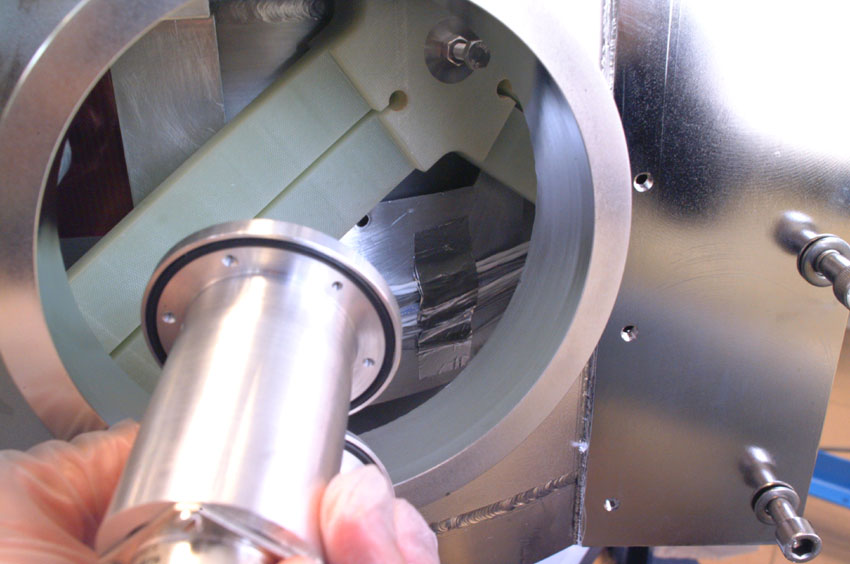

Closed-cycle cooler integration

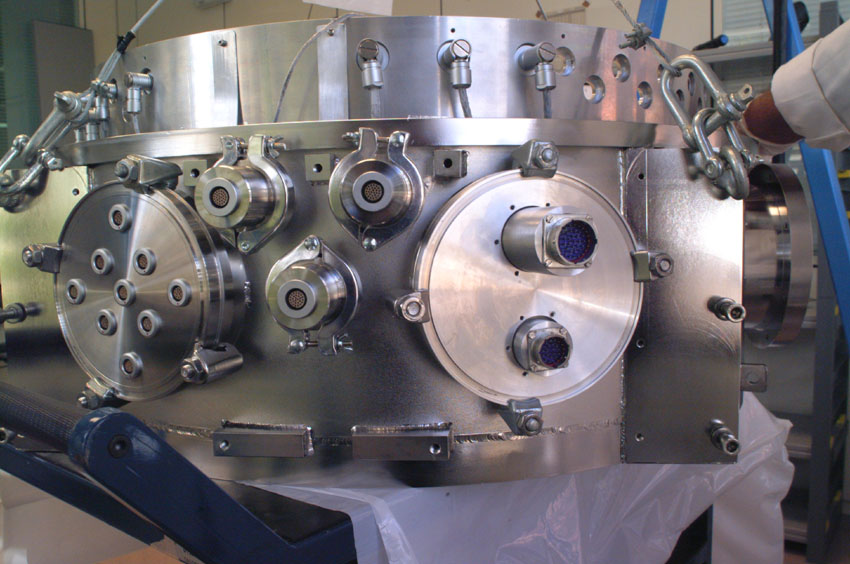

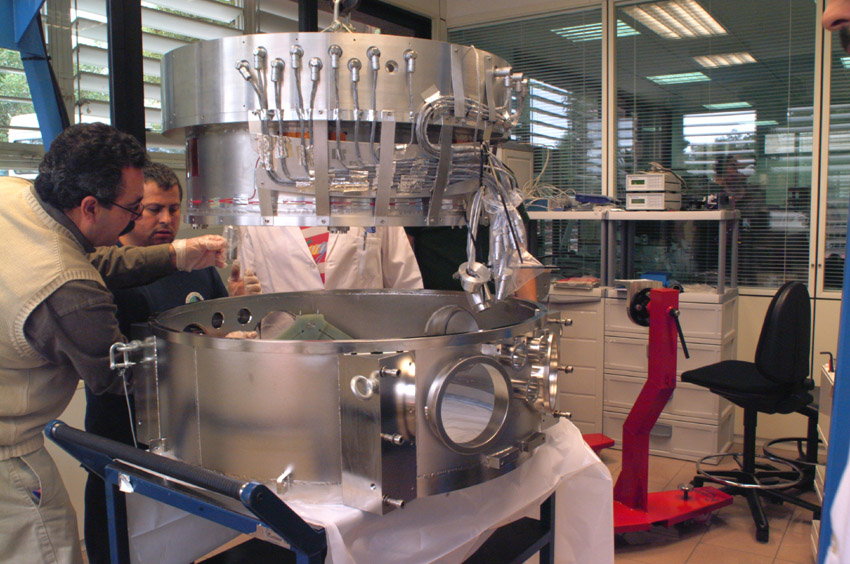

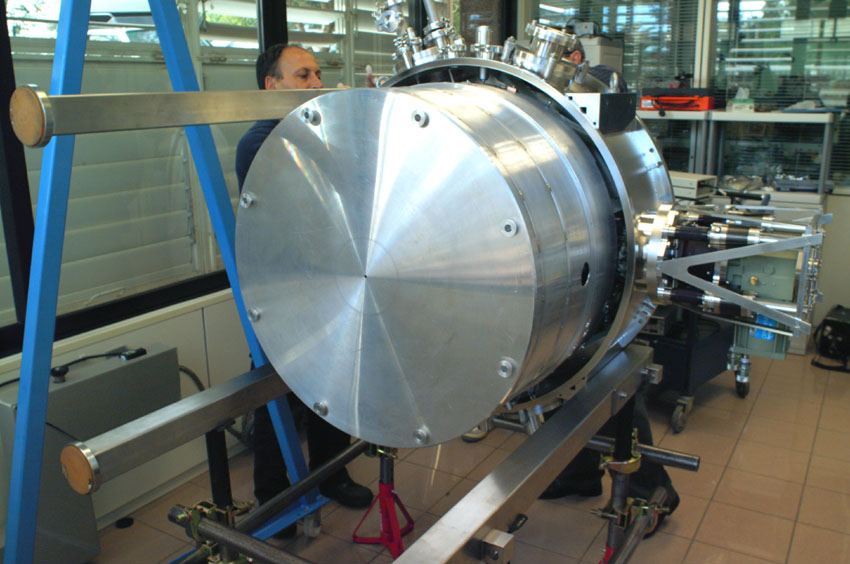

View of the front radiation shiel integrated	Integration of the front cover of the vacuum vessel

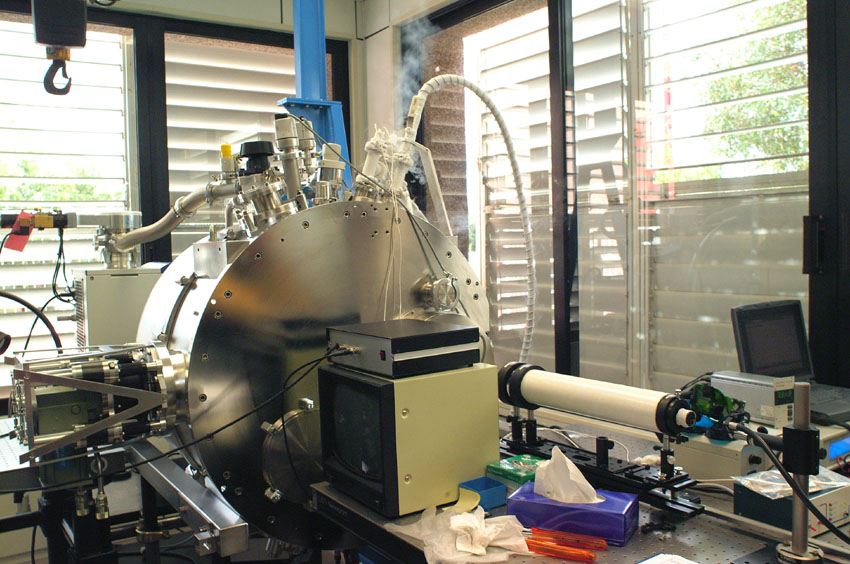

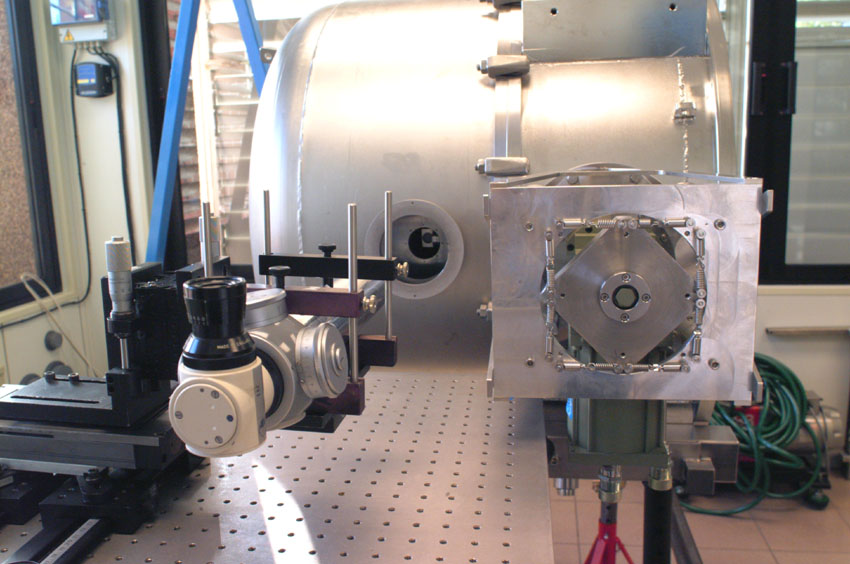

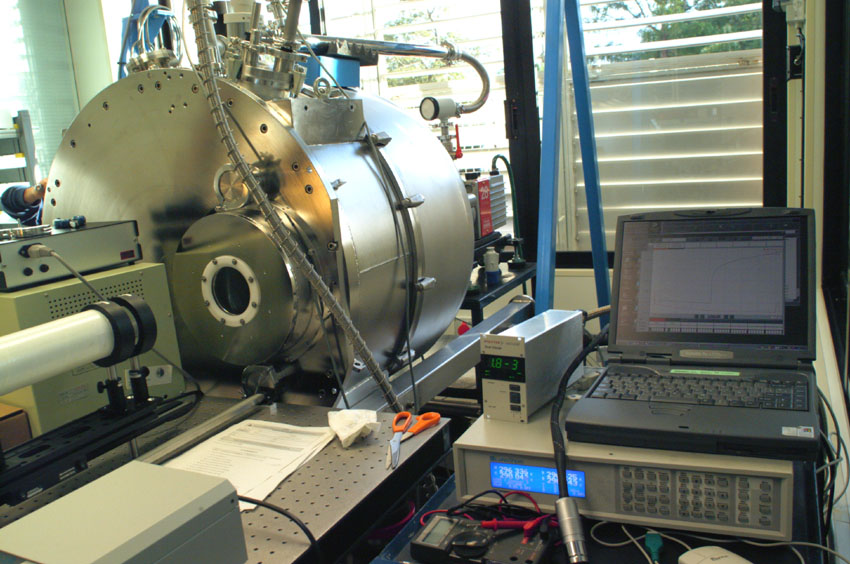

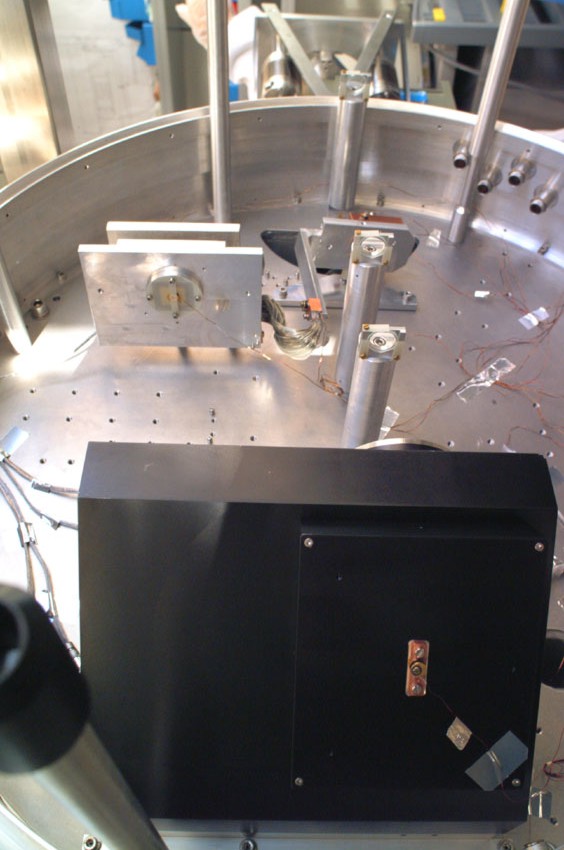

Optical bench with the collimator and reticules placed in specific positions to check their behavior during the first cycle (these reticules were visible at all time through the cryostat auxiliary window). A simulation of the detector module was placed outside the beam line to test the detector thermal control system

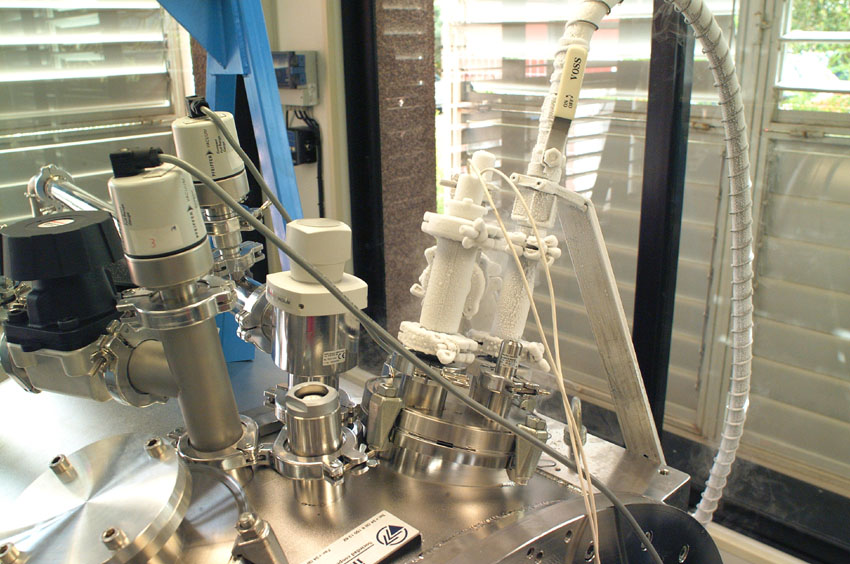

	Back radiation shield view	View of the cryostat auxiliary window

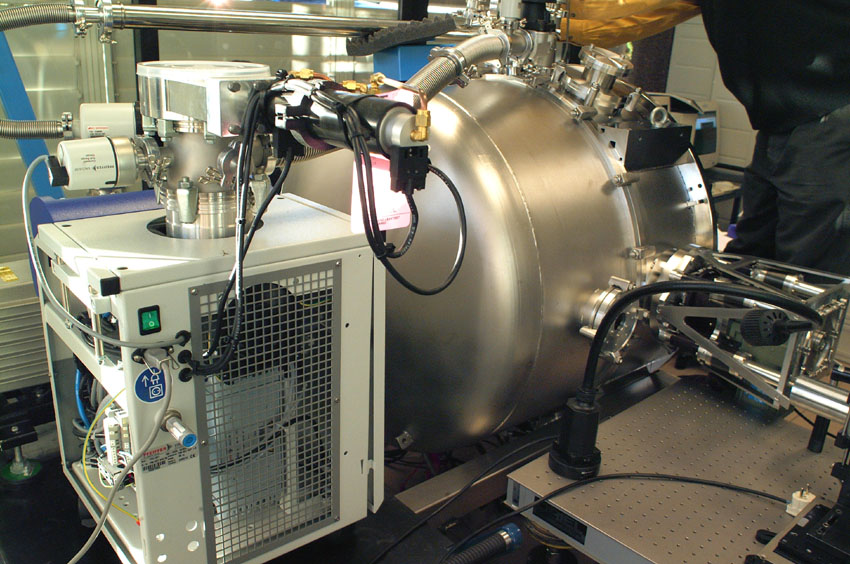

Vacuum

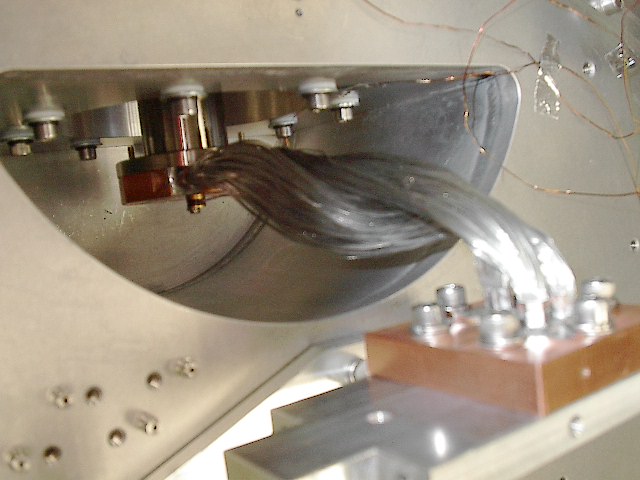

Cooling
